Black Sea Cube
Black Sea Data Cube
How to open this dataset in DeepESDL JupyterLab
from xcube.core.store import new_data_store
store = new_data_store("s3", root="deep-esdl-public", storage_options=dict(anon=True))
# The cube is saved as a multilevel cube, the level 0 is the base layer with
# the highest resolution
ml_dataset = store.open_data('black-sea-1x1024x1024.levels')
# Chek how many levels are present
ml_dataset.num_levels
# Open dataset at a certain level, here level 0
ds = ml_dataset.get_dataset(0)

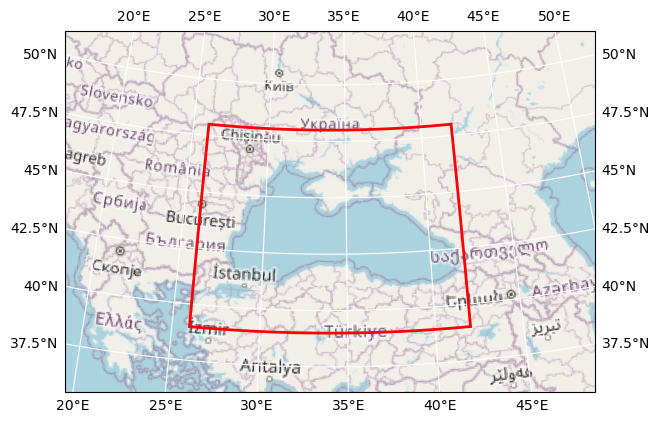

Bounding box map
Map tiles and data from OpenStreetMap, under the ODbL.
| Parameter |
Value |
| Bounding box longitude (°) |
26.0 to 41.998999999999725 |
| Bounding box latitude (°) |
39.000000000000156 to 48.0 |
| Time range |
2015-12-31 to 2017-12-31 |
| Time period |
1D |
| Publisher |
Brockmann Consult GmbH |
Click here for full dataset metadata.
Variable list
Click on a variable name to jump to the variable’s full metadata.
| Variable |
Long name |
Units |
| VHM0 |
Spectral Significant Wave Height (Hm0) |
m |
| chl |
Chlorophyll Concentration |
mg m^-3 |
| sla |
Sea Level Anomaly |
m |
| sss |
Sea Surface Salinity |
psu |
| sst |
Sea Surface Temperature |
K |
| ugos |
Absolute Geostrophic Velocity: Zonal Component |
m s^-1 |
| ugosa |
Geostrophic Velocity Anomalies: Zonal Component |
m s^-1 |
| vgos |
Absolute Geostrophic Velocity: Meridian Component |
m s^-1 |
| vgosa |
Geostrophic Velocity Anomalies: Meridian Component |
m s^-1 |
VHM0
chl
crs
| Field |
Value |
| crs_wkt |
GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AXIS["Latitude",NORTH],AXIS["Longitude",EAST],AUTHORITY["EPSG","4326"]] |
| geographic_crs_name |
WGS 84 |
| grid_mapping_name |
latitude_longitude |
| inverse_flattening |
298.257223563 |
| longitude_of_prime_meridian |
0.0 |
| prime_meridian_name |
Greenwich |
| reference_ellipsoid_name |
WGS 84 |
| semi_major_axis |
6378137.0 |
| semi_minor_axis |
6356752.314245179 |
sla
| Field |
Value |
| grid_mapping |
crs |
| long_name |
Sea Level Anomaly |
| processing_level |
L4 |
| references |
http://www.eo4sibs.uliege.be/doc/EO4SIBS_D4.4_AltimetryL4_DUM_v1.1.pdf |
| source |
EO4SIBS, Level 4, geostrophic currents, multi-mission gridded merged products for a period of 1 year, 0.0625°*0.0625°, daily |
| standard_name |
sea_surface_height_above_sea_level |
| units |
m |
| valid_max |
0.5 |
| valid_min |
-0.5 |
sss
sst
ugos
| Field |
Value |
| grid_mapping |
crs |
| long_name |
Absolute Geostrophic Velocity: Zonal Component |
| processing_level |
L4 |
| references |
http://www.eo4sibs.uliege.be/doc/EO4SIBS_D4.4_AltimetryL4_DUM_v1.1.pdf |
| source |
EO4SIBS, Level 4, geostrophic currents, multi-mission gridded merged products for a period of 1 year, 0.0625°*0.0625°, daily |
| standard_name |
surface_geostrophic_eastward_sea_water_velocity |
| units |
m s^-1 |
| valid_max |
2.0 |
| valid_min |
-2.0 |
ugosa
| Field |
Value |
| grid_mapping |
crs |
| long_name |
Geostrophic Velocity Anomalies: Zonal Component |
| processing_level |
L4 |
| references |
http://www.eo4sibs.uliege.be/doc/EO4SIBS_D4.4_AltimetryL4_DUM_v1.1.pdf |
| source |
EO4SIBS, Level 4, geostrophic currents, multi-mission gridded merged products for a period of 1 year, 0.0625°*0.0625°, daily |
| standard_name |
surface_geostrophic_eastward_sea_water_velocity_assuming_sea_level_for_geoid |
| units |
m s^-1 |
| valid_max |
2.0 |
| valid_min |
-2.0 |
vgos
| Field |
Value |
| grid_mapping |
crs |
| long_name |
Absolute Geostrophic Velocity: Meridian Component |
| processing_level |
L4 |
| references |
http://www.eo4sibs.uliege.be/doc/EO4SIBS_D4.4_AltimetryL4_DUM_v1.1.pdf |
| source |
EO4SIBS, Level 4, geostrophic currents, multi-mission gridded merged products for a period of 1 year, 0.0625°*0.0625°, daily |
| standard_name |
surface_geostrophic_northward_sea_water_velocity |
| units |
m s^-1 |
| valid_max |
2.0 |
| valid_min |
-2.0 |
vgosa
| Field |
Value |
| grid_mapping |
crs |
| long_name |
Geostrophic Velocity Anomalies: Meridian Component |
| processing_level |
L4 |
| references |
http://www.eo4sibs.uliege.be/doc/EO4SIBS_D4.4_AltimetryL4_DUM_v1.1.pdf |
| source |
EO4SIBS, Level 4, geostrophic currents, multi-mission gridded merged products for a period of 1 year, 0.0625°*0.0625°, daily |
| standard_name |
surface_geostrophic_northward_sea_water_velocity_assuming_sea_level_for_geoid |
| units |
m s^-1 |
| valid_max |
2.0 |
| valid_min |
-2.0 |
| Field |
Value |
| Conventions |
CF-1.9 |
| acknowledgment |
EO4SIBS, CMEMS, DeepESDL project |
| contributor_name |
Brockmann Geomatics Sweden AB |
| contributor_url |
www.brockmann-geomatics.se |
| creator_email |
info@brockmann-consult.de |
| creator_name |
Brockmann Consult GmbH |
| creator_url |
www.brockmann-consult.de |
| date_modified |
2022-08-19 16:19:15.359970 |
| geospatial_lat_max |
47.9985 |
| geospatial_lat_min |
39.001500000000156 |
| geospatial_lat_resolution |
0.0030000000000001137 |
| geospatial_lon_max |
41.997499999999725 |
| geospatial_lon_min |
26.0015 |
| geospatial_lon_resolution |
0.0030000000000001137 |
| id |
black-sea-256x256x256 |
| institution |
Brockmann Consult GmbH |
| license |
Terms and conditions of the DeepESDL data distribution |
| project |
DeepESDL |
| publisher_email |
info@brockmann-consult.de |
| publisher_name |
Brockmann Consult GmbH |
| publisher_url |
www.brockmann-consult.de |
| source |
EO4SIBS, CMEMS |
| time_coverage_end |
2017-12-31T00:00:00.000000000 |
| time_coverage_start |
2016-01-01T00:00:00.000000000 |
| title |
Black Sea Data Cube |
